1.支持运行OpenStack
的操作系统
OpenStack
作为一个云操作系统,可以安装在使用Linux
操作系统的服务器上。
目前可以安装运行OpenStack
的操作系统如下:
openSUSE
Red Hat Enterprise Linux/CentOS
Ubuntu
Debian
2.OpenStack
部署工具
以下列出了OpenStack
常用部署工具,共5个:
![在单节点物理机上以All-in-One方式部署与安装OpenStack云操作系统 图片[1]-在单节点物理机上以All-in-One方式部署与安装OpenStack云操作系统-不念博客](https://www.bunian.cn/wp-content/uploads/2024/01/1704441892-image.png)
3.安装OpenStack
云操作系统
3.1环境装备
3.1.1物理机准备
准备一台物理机,规划与配置信息如下:
主机名 | 操作系统 | IP 地址 | 备注 |
---|---|---|---|
mynode-a | CentOS Linux release 7.9.2009 (Core) | 192.168.250.250 |
资源:
CPU | 内存 | 硬盘 |
---|---|---|
8核 | 16GB | 100GB+400GB |
3.1.2关闭防火墙与SElinux
停用防火墙并禁用开机自启动:
[root@myopenstack ~]# systemctl stop firewalld[root@myopenstack ~]# systemctl disable firewalldRemoved symlink /etc/systemd/system/multi-user.target.wants/firewalld.service.Removed symlink /etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service.[root@myopenstack ~]#[root@myopenstack ~]# systemctl stop firewalld [root@myopenstack ~]# systemctl disable firewalld Removed symlink /etc/systemd/system/multi-user.target.wants/firewalld.service. Removed symlink /etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service. [root@myopenstack ~]#[root@myopenstack ~]# systemctl stop firewalld [root@myopenstack ~]# systemctl disable firewalld Removed symlink /etc/systemd/system/multi-user.target.wants/firewalld.service. Removed symlink /etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service. [root@myopenstack ~]#
将SElinux
设置为disabled
状态:
root@myopenstack ~]# vim /etc/selinux/config[root@myopenstack ~]# cat /etc/selinux/config# This file controls the state of SELinux on the system.# SELINUX= can take one of these three values:# enforcing - SELinux security policy is enforced.# permissive - SELinux prints warnings instead of enforcing.# disabled - No SELinux policy is loaded.SELINUX=disabled# SELINUXTYPE= can take one of three values:# targeted - Targeted processes are protected,# minimum - Modification of targeted policy. Only selected processes are protected.# mls - Multi Level Security protection.SELINUXTYPE=targetedroot@myopenstack ~]# vim /etc/selinux/config [root@myopenstack ~]# cat /etc/selinux/config # This file controls the state of SELinux on the system. # SELINUX= can take one of these three values: # enforcing - SELinux security policy is enforced. # permissive - SELinux prints warnings instead of enforcing. # disabled - No SELinux policy is loaded. SELINUX=disabled # SELINUXTYPE= can take one of three values: # targeted - Targeted processes are protected, # minimum - Modification of targeted policy. Only selected processes are protected. # mls - Multi Level Security protection. SELINUXTYPE=targetedroot@myopenstack ~]# vim /etc/selinux/config [root@myopenstack ~]# cat /etc/selinux/config # This file controls the state of SELinux on the system. # SELINUX= can take one of these three values: # enforcing - SELinux security policy is enforced. # permissive - SELinux prints warnings instead of enforcing. # disabled - No SELinux policy is loaded. SELINUX=disabled # SELINUXTYPE= can take one of three values: # targeted - Targeted processes are protected, # minimum - Modification of targeted policy. Only selected processes are protected. # mls - Multi Level Security protection. SELINUXTYPE=targeted
为使启机前临时生效,设置:
[root@myopenstack ~]# setenforce 0[root@myopenstack ~]# setenforce 0[root@myopenstack ~]# setenforce 0
3.1.3停用NetworkManager
服务
由于NetworkManager
网络管理器与OpenStack
网络组件Neutron
有冲害,应停用它,改用传统的网络服务network
来管理网络。
执行下列命令停用NetworkManager
服务,并启用network
服务管理网络。
[root@myopenstack ~]# systemctl stop NetworkManager[root@myopenstack ~]# systemctl disable NetworkManagerRemoved symlink /etc/systemd/system/multi-user.target.wants/NetworkManager.service.Removed symlink /etc/systemd/system/dbus-org.freedesktop.nm-dispatcher.service.Removed symlink /etc/systemd/system/network-online.target.wants/NetworkManager-wait-online.service.[root@myopenstack ~]# systemctl enable networknetwork.service is not a native service, redirecting to /sbin/chkconfig.Executing /sbin/chkconfig network on[root@myopenstack ~]# systemctl start network[root@myopenstack ~]#[root@myopenstack ~]# systemctl stop NetworkManager [root@myopenstack ~]# systemctl disable NetworkManager Removed symlink /etc/systemd/system/multi-user.target.wants/NetworkManager.service. Removed symlink /etc/systemd/system/dbus-org.freedesktop.nm-dispatcher.service. Removed symlink /etc/systemd/system/network-online.target.wants/NetworkManager-wait-online.service. [root@myopenstack ~]# systemctl enable network network.service is not a native service, redirecting to /sbin/chkconfig. Executing /sbin/chkconfig network on [root@myopenstack ~]# systemctl start network [root@myopenstack ~]#[root@myopenstack ~]# systemctl stop NetworkManager [root@myopenstack ~]# systemctl disable NetworkManager Removed symlink /etc/systemd/system/multi-user.target.wants/NetworkManager.service. Removed symlink /etc/systemd/system/dbus-org.freedesktop.nm-dispatcher.service. Removed symlink /etc/systemd/system/network-online.target.wants/NetworkManager-wait-online.service. [root@myopenstack ~]# systemctl enable network network.service is not a native service, redirecting to /sbin/chkconfig. Executing /sbin/chkconfig network on [root@myopenstack ~]# systemctl start network [root@myopenstack ~]#
这里可以查看一下网络状态:
[root@myopenstack ~]# systemctl status network● network.service - LSB: Bring up/down networkingLoaded: loaded (/etc/rc.d/init.d/network; bad; vendor preset: disabled)Active: active (exited) since Thu 2024-01-04 08:33:16 CST; 1 day 2h agoDocs: man:systemd-sysv-generator(8)Process: 1159 ExecStart=/etc/rc.d/init.d/network start (code=exited, status=0/SUCCESS)Tasks: 0Jan 04 08:33:11 myopenstack systemd[1]: Starting LSB: Bring up/down networking...Jan 04 08:33:12 myopenstack network[1159]: 正在打开环回接口: [ 确定 ]Jan 04 08:33:16 myopenstack network[1159]: 正在打开接口 eth0: [ 确定 ]Jan 04 08:33:16 myopenstack systemd[1]: Started LSB: Bring up/down networking.[root@mynode-a ~]#[root@myopenstack ~]# systemctl status network ● network.service - LSB: Bring up/down networking Loaded: loaded (/etc/rc.d/init.d/network; bad; vendor preset: disabled) Active: active (exited) since Thu 2024-01-04 08:33:16 CST; 1 day 2h ago Docs: man:systemd-sysv-generator(8) Process: 1159 ExecStart=/etc/rc.d/init.d/network start (code=exited, status=0/SUCCESS) Tasks: 0 Jan 04 08:33:11 myopenstack systemd[1]: Starting LSB: Bring up/down networking... Jan 04 08:33:12 myopenstack network[1159]: 正在打开环回接口: [ 确定 ] Jan 04 08:33:16 myopenstack network[1159]: 正在打开接口 eth0: [ 确定 ] Jan 04 08:33:16 myopenstack systemd[1]: Started LSB: Bring up/down networking. [root@mynode-a ~]#[root@myopenstack ~]# systemctl status network ● network.service - LSB: Bring up/down networking Loaded: loaded (/etc/rc.d/init.d/network; bad; vendor preset: disabled) Active: active (exited) since Thu 2024-01-04 08:33:16 CST; 1 day 2h ago Docs: man:systemd-sysv-generator(8) Process: 1159 ExecStart=/etc/rc.d/init.d/network start (code=exited, status=0/SUCCESS) Tasks: 0 Jan 04 08:33:11 myopenstack systemd[1]: Starting LSB: Bring up/down networking... Jan 04 08:33:12 myopenstack network[1159]: 正在打开环回接口: [ 确定 ] Jan 04 08:33:16 myopenstack network[1159]: 正在打开接口 eth0: [ 确定 ] Jan 04 08:33:16 myopenstack systemd[1]: Started LSB: Bring up/down networking. [root@mynode-a ~]#
3.1.4设置网络
这里采用桥接模式接入网络,IP地址
规划为192.168.250.250/24
的C
类网络:
[root@myopenstack ~]# cat /etc/sysconfig/network-scripts/ifcfg-eth0TYPE=EthernetDEFROUTE=yesIPV4_FAILURE_FATAL=noNAME=eth0UUID=45242253-7348-405e-111a-40e72803e0caDEVICE=eth0ONBOOT=yesIPADDR=192.168.250.250PREFIX=24GATEWAY=192.168.250.1DNS1=222.222.222.222PEERDNS=no[root@mynode-a ~]#[root@myopenstack ~]# cat /etc/sysconfig/network-scripts/ifcfg-eth0 TYPE=Ethernet DEFROUTE=yes IPV4_FAILURE_FATAL=no NAME=eth0 UUID=45242253-7348-405e-111a-40e72803e0ca DEVICE=eth0 ONBOOT=yes IPADDR=192.168.250.250 PREFIX=24 GATEWAY=192.168.250.1 DNS1=222.222.222.222 PEERDNS=no [root@mynode-a ~]#[root@myopenstack ~]# cat /etc/sysconfig/network-scripts/ifcfg-eth0 TYPE=Ethernet DEFROUTE=yes IPV4_FAILURE_FATAL=no NAME=eth0 UUID=45242253-7348-405e-111a-40e72803e0ca DEVICE=eth0 ONBOOT=yes IPADDR=192.168.250.250 PREFIX=24 GATEWAY=192.168.250.1 DNS1=222.222.222.222 PEERDNS=no [root@mynode-a ~]#
3.1.5设置主机名
[root@myopenstack ~]# hostnamectl set-hostname mynode-a[root@myopenstack ~]# hostnamectl set-hostname mynode-a[root@myopenstack ~]# hostnamectl set-hostname mynode-a
接着修改/etc/hosts
文件:
[root@myopenstack ~]# cat /etc/hosts127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4::1 localhost localhost.localdomain localhost6 localhost6.localdomain6192.168.250.250 mynode-a[root@myopenstack ~]#[root@myopenstack ~]# cat /etc/hosts 127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4 ::1 localhost localhost.localdomain localhost6 localhost6.localdomain6 192.168.250.250 mynode-a [root@myopenstack ~]#[root@myopenstack ~]# cat /etc/hosts 127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4 ::1 localhost localhost.localdomain localhost6 localhost6.localdomain6 192.168.250.250 mynode-a [root@myopenstack ~]#
注:设置主机名的目的如下:
其目的是rabbitmq-server
服务在启动前会解析主机名的地址是否可用。
如果上面面不设置解析,使用RDO
安装OpenStack
的过程中启动rabbitmq-server
服务时会失败,从而导致安装不成功。
而RabbitMQ
是一个在AMQP
基础上完成的可复用的企业消息系统,为OpenStack
的计算组件Nova
的各个服务之间提供一个中心的消息机制。
3.1.6更改语言编码
[root@mynode-a ~]# cat /etc/environmentLANG=en_US.utf-8LC_ALL=en_US.utf-8[root@mynode-a ~]#[root@mynode-a ~]# cat /etc/environment LANG=en_US.utf-8 LC_ALL=en_US.utf-8 [root@mynode-a ~]#[root@mynode-a ~]# cat /etc/environment LANG=en_US.utf-8 LC_ALL=en_US.utf-8 [root@mynode-a ~]#
3.1.7设置同步时间
OpenStack
环境中所有节点的时间必须是同步的,下面用chrony
进行同步:
[root@mynode-a ~]# yum install -y chronyLoaded plugins: fastestmirror, langpacksDetermining fastest mirrors* base: mirrors.bfsu.edu.cn* extras: mirrors.ustc.edu.cn……[root@mynode-a ~]# yum install -y chrony Loaded plugins: fastestmirror, langpacks Determining fastest mirrors * base: mirrors.bfsu.edu.cn * extras: mirrors.ustc.edu.cn ……[root@mynode-a ~]# yum install -y chrony Loaded plugins: fastestmirror, langpacks Determining fastest mirrors * base: mirrors.bfsu.edu.cn * extras: mirrors.ustc.edu.cn ……
这里chrony
默认已安装,不用安装。
下面增加一个国内的NTP
服务器地址:
[root@mynode-a ~]# cat /etc/chrony.conf# Use public servers from the pool.ntp.org project.# Please consider joining the pool (http://www.pool.ntp.org/join.html).server 0.centos.pool.ntp.org iburstserver 1.centos.pool.ntp.org iburstserver 2.centos.pool.ntp.org iburstserver 3.centos.pool.ntp.org iburstserver ntp1.aliyun.com iburst[root@mynode-a ~]# cat /etc/chrony.conf # Use public servers from the pool.ntp.org project. # Please consider joining the pool (http://www.pool.ntp.org/join.html). server 0.centos.pool.ntp.org iburst server 1.centos.pool.ntp.org iburst server 2.centos.pool.ntp.org iburst server 3.centos.pool.ntp.org iburst server ntp1.aliyun.com iburst[root@mynode-a ~]# cat /etc/chrony.conf # Use public servers from the pool.ntp.org project. # Please consider joining the pool (http://www.pool.ntp.org/join.html). server 0.centos.pool.ntp.org iburst server 1.centos.pool.ntp.org iburst server 2.centos.pool.ntp.org iburst server 3.centos.pool.ntp.org iburst server ntp1.aliyun.com iburst
这里可以查看一下本地时间:
[root@mynode-a ~]# timedatectlLocal time: Fri 2024-01-05 10:47:21 CSTUniversal time: Fri 2024-01-05 02:47:21 UTCRTC time: Fri 2024-01-05 02:47:20Time zone: Asia/Shanghai (CST, +0800)NTP enabled: yesNTP synchronized: yesRTC in local TZ: noDST active: n/a[root@mynode-a ~]#[root@mynode-a ~]# timedatectl Local time: Fri 2024-01-05 10:47:21 CST Universal time: Fri 2024-01-05 02:47:21 UTC RTC time: Fri 2024-01-05 02:47:20 Time zone: Asia/Shanghai (CST, +0800) NTP enabled: yes NTP synchronized: yes RTC in local TZ: no DST active: n/a [root@mynode-a ~]#[root@mynode-a ~]# timedatectl Local time: Fri 2024-01-05 10:47:21 CST Universal time: Fri 2024-01-05 02:47:21 UTC RTC time: Fri 2024-01-05 02:47:20 Time zone: Asia/Shanghai (CST, +0800) NTP enabled: yes NTP synchronized: yes RTC in local TZ: no DST active: n/a [root@mynode-a ~]#
3.2.软件库准备
CentOS7
提供的附加软件库中包含启用OpenStack
库的RPM
包,进行下列设置:
[root@mynode-a ~]# yum -y update[root@mynode-a ~]# yum -y install centos-release-openstack-trainLoaded plugins: fastestmirror, langpacksLoading mirror speeds from cached hostfile* base: mirrors.bfsu.edu.cn* extras: mirrors.ustc.edu.cn* updates: mirrors.huaweicloud.comResolving Dependencies……Installed:centos-release-openstack-train.noarch 0:1-1.el7.centosDependency Installed:centos-release-ceph-nautilus.noarch 0:1.2-2.el7.centos centos-release-nfs-ganesha28.noarch 0:1.0-3.el7.centos centos-release-qemu-ev.noarch 0:1.0-4.el7.centoscentos-release-storage-common.noarch 0:2-2.el7.centos centos-release-virt-common.noarch 0:1-1.el7.centosComplete![root@mynode-a ~]#[root@mynode-a ~]# yum -y update [root@mynode-a ~]# yum -y install centos-release-openstack-train Loaded plugins: fastestmirror, langpacks Loading mirror speeds from cached hostfile * base: mirrors.bfsu.edu.cn * extras: mirrors.ustc.edu.cn * updates: mirrors.huaweicloud.com Resolving Dependencies …… Installed: centos-release-openstack-train.noarch 0:1-1.el7.centos Dependency Installed: centos-release-ceph-nautilus.noarch 0:1.2-2.el7.centos centos-release-nfs-ganesha28.noarch 0:1.0-3.el7.centos centos-release-qemu-ev.noarch 0:1.0-4.el7.centos centos-release-storage-common.noarch 0:2-2.el7.centos centos-release-virt-common.noarch 0:1-1.el7.centos Complete! [root@mynode-a ~]#[root@mynode-a ~]# yum -y update [root@mynode-a ~]# yum -y install centos-release-openstack-train Loaded plugins: fastestmirror, langpacks Loading mirror speeds from cached hostfile * base: mirrors.bfsu.edu.cn * extras: mirrors.ustc.edu.cn * updates: mirrors.huaweicloud.com Resolving Dependencies …… Installed: centos-release-openstack-train.noarch 0:1-1.el7.centos Dependency Installed: centos-release-ceph-nautilus.noarch 0:1.2-2.el7.centos centos-release-nfs-ganesha28.noarch 0:1.0-3.el7.centos centos-release-qemu-ev.noarch 0:1.0-4.el7.centos centos-release-storage-common.noarch 0:2-2.el7.centos centos-release-virt-common.noarch 0:1-1.el7.centos Complete! [root@mynode-a ~]#
3.3安装Packstack
安装器
执行以下命令安装openstack-packstack
及其依赖包:
[root@mynode-a ~]# yum -y updateLoaded plugins: fastestmirror, langpacksLoading mirror speeds from cached hostfile* base: mirrors.bfsu.edu.cn* centos-ceph-nautilus: mirrors.huaweicloud.com* centos-nfs-ganesha28: mirrors.bfsu.edu.cn* centos-openstack-train: mirrors.bfsu.edu.cn* centos-qemu-ev: mirrors.bfsu.edu.cn……[root@mynode-a ~]# yum -y install openstack-packstack……Installed:openstack-packstack.noarch 1:15.1.0-1.el7……Dependency Installed:boost159-atomic.x86_64 0:1.59.0-2.el7.1 boost159-chrono.x86_64 0:1.59.0-2.el7.1 boost159-date-time.x86_64 0:1.59.0-2.el7.1 boost159-filesystem.x86_64 0:1.59.0-2.el7.1boost159-locale.x86_64 0:1.59.0-2.el7.1 boost159-log.x86_64 0:1.59.0-2.el7.1 boost159-puppet-nova.noarch 0:15.8.1-1.el7 puppet-nssdb.noarch 0:1.0.1-1.2ed2a2dgit.el7 puppet-openstack_extras.noarch 0:15.4.1-1.el7 puppet-openstacklib.noarch 0:15.5.0-1.el7puppet-oslo.noarch 0:15.5.0-1.el7 puppet-ovn.noarch 0:15.5.0-1.el7 puppet-rubygem-io-console.x86_64 0:0.4.2-39.el7_9 rubygem-json.x86_64 0:1.7.7-39.el7_9 rubygem-pathspec.noarch 0:0.2.1-3.el7 rubygem-psych.x86_64 0:2.0.0-39.el7_9rubygem-rdoc.noarch 0:4.0.0-39.el7_9 rubygem-rgen.noarch 0:0.6.6-2.el7 rubygems.noarch 0:2.0.14.1-39.el7_9 yaml-cpp.x86_64 0:0.5.1-6.el7Complete![root@mynode-a ~]# yum -y update Loaded plugins: fastestmirror, langpacks Loading mirror speeds from cached hostfile * base: mirrors.bfsu.edu.cn * centos-ceph-nautilus: mirrors.huaweicloud.com * centos-nfs-ganesha28: mirrors.bfsu.edu.cn * centos-openstack-train: mirrors.bfsu.edu.cn * centos-qemu-ev: mirrors.bfsu.edu.cn …… [root@mynode-a ~]# yum -y install openstack-packstack …… Installed: openstack-packstack.noarch 1:15.1.0-1.el7 …… Dependency Installed: boost159-atomic.x86_64 0:1.59.0-2.el7.1 boost159-chrono.x86_64 0:1.59.0-2.el7.1 boost159-date-time.x86_64 0:1.59.0-2.el7.1 boost159-filesystem.x86_64 0:1.59.0-2.el7.1 boost159-locale.x86_64 0:1.59.0-2.el7.1 boost159-log.x86_64 0:1.59.0-2.el7.1 boost159- puppet-nova.noarch 0:15.8.1-1.el7 puppet-nssdb.noarch 0:1.0.1-1.2ed2a2dgit.el7 puppet-openstack_extras.noarch 0:15.4.1-1.el7 puppet-openstacklib.noarch 0:15.5.0-1.el7 puppet-oslo.noarch 0:15.5.0-1.el7 puppet-ovn.noarch 0:15.5.0-1.el7 puppet- rubygem-io-console.x86_64 0:0.4.2-39.el7_9 rubygem-json.x86_64 0:1.7.7-39.el7_9 rubygem-pathspec.noarch 0:0.2.1-3.el7 rubygem-psych.x86_64 0:2.0.0-39.el7_9 rubygem-rdoc.noarch 0:4.0.0-39.el7_9 rubygem-rgen.noarch 0:0.6.6-2.el7 rubygems.noarch 0:2.0.14.1-39.el7_9 yaml-cpp.x86_64 0:0.5.1-6.el7 Complete![root@mynode-a ~]# yum -y update Loaded plugins: fastestmirror, langpacks Loading mirror speeds from cached hostfile * base: mirrors.bfsu.edu.cn * centos-ceph-nautilus: mirrors.huaweicloud.com * centos-nfs-ganesha28: mirrors.bfsu.edu.cn * centos-openstack-train: mirrors.bfsu.edu.cn * centos-qemu-ev: mirrors.bfsu.edu.cn …… [root@mynode-a ~]# yum -y install openstack-packstack …… Installed: openstack-packstack.noarch 1:15.1.0-1.el7 …… Dependency Installed: boost159-atomic.x86_64 0:1.59.0-2.el7.1 boost159-chrono.x86_64 0:1.59.0-2.el7.1 boost159-date-time.x86_64 0:1.59.0-2.el7.1 boost159-filesystem.x86_64 0:1.59.0-2.el7.1 boost159-locale.x86_64 0:1.59.0-2.el7.1 boost159-log.x86_64 0:1.59.0-2.el7.1 boost159- puppet-nova.noarch 0:15.8.1-1.el7 puppet-nssdb.noarch 0:1.0.1-1.2ed2a2dgit.el7 puppet-openstack_extras.noarch 0:15.4.1-1.el7 puppet-openstacklib.noarch 0:15.5.0-1.el7 puppet-oslo.noarch 0:15.5.0-1.el7 puppet-ovn.noarch 0:15.5.0-1.el7 puppet- rubygem-io-console.x86_64 0:0.4.2-39.el7_9 rubygem-json.x86_64 0:1.7.7-39.el7_9 rubygem-pathspec.noarch 0:0.2.1-3.el7 rubygem-psych.x86_64 0:2.0.0-39.el7_9 rubygem-rdoc.noarch 0:4.0.0-39.el7_9 rubygem-rgen.noarch 0:0.6.6-2.el7 rubygems.noarch 0:2.0.14.1-39.el7_9 yaml-cpp.x86_64 0:0.5.1-6.el7 Complete!
安装过程中需要安装许多依赖包,如openstack-packstack-puppet
等。
Packstack
是RDO
的OpenStack
安装工具,用于取代手动设置OpenStack
。
Packstack
基于Puppet
工具,通过Puppet
部署OpenStack
各组件。
Puppet
是一种Linux、UNIX和Windows
平台的集中配置管理系统,使用自有的Puppet
将这些系统实体称为资源,其设计目标是简化对这些资源的管理,妥善处理资源间的依赖关系。
Packstack安装器的基本用法如下:
packstack[选项[--help]packstack[选项[--help]packstack[选项[--help]
执行 packstack --help
命令列出选项清单:
命令选项 | 含义 |
---|---|
--gen-ansWer-1ile=SENANSWERFLE | 产生应答文件模板 |
--answer-file=ANSWER_FILE | 依据应答文件的配置信息以非交互模式运行该工具 |
--install-hosts=INSTALL _HOSTS | 在一组主机上进行批量安装,主机列表以逗号分隔。第一台主机作为控制节点,其他主机作为计算节点。如果仅提供一台主机,将集中在单节点上以All-in-One 方式安装 |
--allinone | 将所有功能集中安装在单一主机上 |
--ssh-public-key=SSH_PUBLIC_KEY | 用于设置安装在服务器上的公钥路径 |
--default-password=DEFAULT_PASSWORD | 用于设置默认密码(会被具体服务或用户的密码所覆盖 |
--mariadb-install=MARIADB_INSTALL | 用于设置是否安装MARIADB 数据库 |
3.4运行Packstack安装OpenStack
下面直接使用All-in-One
方式进行单节点部署:
[root@mynode-a ~]# packstack --allinoneWelcome to the Packstack setup utilityThe installation log file is available at: /var/tmp/packstack/20230824-111449-Rt5WRw/openstack-setup.logPackstack changed given value to required value /root/.ssh/id_rsa.pubInstalling:Clean Up [ DONE ]Discovering ip protocol version [ DONE ]Setting up ssh keys [ DONE ]Preparing servers [ DONE ]Pre installing Puppet and discovering hosts' details [ DONE ]Preparing pre-install entries [ DONE ]Setting up CACERT [ DONE ]Preparing AMQP entries [ DONE ]Preparing MariaDB entries [ DONE ]Fixing Keystone LDAP config parameters to be undef if empty[ DONE ]Preparing Keystone entries [ DONE ]Preparing Glance entries [ DONE ]Checking if the Cinder server has a cinder-volumes vg[ DONE ]Preparing Cinder entries [ DONE ]Preparing Nova API entries [ DONE ]Creating ssh keys for Nova migration [ DONE ]Gathering ssh host keys for Nova migration [ DONE ]Preparing Nova Compute entries [ DONE ]Preparing Nova Scheduler entries [ DONE ]Preparing Nova VNC Proxy entries [ DONE ]Preparing OpenStack Network-related Nova entries [ DONE ]Preparing Nova Common entries [ DONE ]Preparing Neutron API entries [ DONE ]Preparing Neutron L3 entries [ DONE ]Preparing Neutron L2 Agent entries [ DONE ]Preparing Neutron DHCP Agent entries [ DONE ]Preparing Neutron Metering Agent entries [ DONE ]Checking if NetworkManager is enabled and running [ DONE ]Preparing OpenStack Client entries [ DONE ]Preparing Horizon entries [ DONE ]Preparing Swift builder entries [ DONE ]Preparing Swift proxy entries [ DONE ]Preparing Swift storage entries [ DONE ]Preparing Gnocchi entries [ DONE ]Preparing Redis entries [ DONE ]Preparing Ceilometer entries [ DONE ]Preparing Aodh entries [ DONE ]Preparing Puppet manifests [ DONE ]Copying Puppet modules and manifests [ DONE ]Applying 192.168.250.250_controller.pp192.168.250.250_controller.pp: [ DONE ]Applying 192.168.250.250_network.pp192.168.250.250_network.pp: [ DONE ]Applying 192.168.250.250_compute.pp192.168.250.250_compute.pp: [ DONE ]Applying Puppet manifests [ DONE ]Finalizing [ DONE ]**** Installation completed successfully ******Additional information:* Parameter CONFIG_NEUTRON_L2_AGENT: You have chosen OVN Neutron backend. Note that this backend does not support the VPNaaS or FWaaS services. Geneve will be used as the encapsulation method for tenant networks* A new answerfile was created in: /root/packstack-answers-20230824-111451.txt* Time synchronization installation was skipped. Please note that unsynchronized time on server instances might be problem for some OpenStack components.* File /root/keystonerc_admin has been created on OpenStack client host 192.168.250.250. To use the command line tools you need to source the file.* To access the OpenStack Dashboard browse to http://192.168.250.250/dashboard .Please, find your login credentials stored in the keystonerc_admin in your home directory.* Because of the kernel update the host 192.168.250.250 requires reboot.* The installation log file is available at: /var/tmp/packstack/20230824-111449-Rt5WRw/openstack-setup.log* The generated manifests are available at: /var/tmp/packstack/20230824-111449-Rt5WRw/manifestsYou have new mail in /var/spool/mail/root[root@mynode-a ~]#[root@mynode-a ~]# packstack --allinone Welcome to the Packstack setup utility The installation log file is available at: /var/tmp/packstack/20230824-111449-Rt5WRw/openstack-setup.log Packstack changed given value to required value /root/.ssh/id_rsa.pub Installing: Clean Up [ DONE ] Discovering ip protocol version [ DONE ] Setting up ssh keys [ DONE ] Preparing servers [ DONE ] Pre installing Puppet and discovering hosts' details [ DONE ] Preparing pre-install entries [ DONE ] Setting up CACERT [ DONE ] Preparing AMQP entries [ DONE ] Preparing MariaDB entries [ DONE ] Fixing Keystone LDAP config parameters to be undef if empty[ DONE ] Preparing Keystone entries [ DONE ] Preparing Glance entries [ DONE ] Checking if the Cinder server has a cinder-volumes vg[ DONE ] Preparing Cinder entries [ DONE ] Preparing Nova API entries [ DONE ] Creating ssh keys for Nova migration [ DONE ] Gathering ssh host keys for Nova migration [ DONE ] Preparing Nova Compute entries [ DONE ] Preparing Nova Scheduler entries [ DONE ] Preparing Nova VNC Proxy entries [ DONE ] Preparing OpenStack Network-related Nova entries [ DONE ] Preparing Nova Common entries [ DONE ] Preparing Neutron API entries [ DONE ] Preparing Neutron L3 entries [ DONE ] Preparing Neutron L2 Agent entries [ DONE ] Preparing Neutron DHCP Agent entries [ DONE ] Preparing Neutron Metering Agent entries [ DONE ] Checking if NetworkManager is enabled and running [ DONE ] Preparing OpenStack Client entries [ DONE ] Preparing Horizon entries [ DONE ] Preparing Swift builder entries [ DONE ] Preparing Swift proxy entries [ DONE ] Preparing Swift storage entries [ DONE ] Preparing Gnocchi entries [ DONE ] Preparing Redis entries [ DONE ] Preparing Ceilometer entries [ DONE ] Preparing Aodh entries [ DONE ] Preparing Puppet manifests [ DONE ] Copying Puppet modules and manifests [ DONE ] Applying 192.168.250.250_controller.pp 192.168.250.250_controller.pp: [ DONE ] Applying 192.168.250.250_network.pp 192.168.250.250_network.pp: [ DONE ] Applying 192.168.250.250_compute.pp 192.168.250.250_compute.pp: [ DONE ] Applying Puppet manifests [ DONE ] Finalizing [ DONE ] **** Installation completed successfully ****** Additional information: * Parameter CONFIG_NEUTRON_L2_AGENT: You have chosen OVN Neutron backend. Note that this backend does not support the VPNaaS or FWaaS services. Geneve will be used as the encapsulation method for tenant networks * A new answerfile was created in: /root/packstack-answers-20230824-111451.txt * Time synchronization installation was skipped. Please note that unsynchronized time on server instances might be problem for some OpenStack components. * File /root/keystonerc_admin has been created on OpenStack client host 192.168.250.250. To use the command line tools you need to source the file. * To access the OpenStack Dashboard browse to http://192.168.250.250/dashboard . Please, find your login credentials stored in the keystonerc_admin in your home directory. * Because of the kernel update the host 192.168.250.250 requires reboot. * The installation log file is available at: /var/tmp/packstack/20230824-111449-Rt5WRw/openstack-setup.log * The generated manifests are available at: /var/tmp/packstack/20230824-111449-Rt5WRw/manifests You have new mail in /var/spool/mail/root [root@mynode-a ~]#[root@mynode-a ~]# packstack --allinone Welcome to the Packstack setup utility The installation log file is available at: /var/tmp/packstack/20230824-111449-Rt5WRw/openstack-setup.log Packstack changed given value to required value /root/.ssh/id_rsa.pub Installing: Clean Up [ DONE ] Discovering ip protocol version [ DONE ] Setting up ssh keys [ DONE ] Preparing servers [ DONE ] Pre installing Puppet and discovering hosts' details [ DONE ] Preparing pre-install entries [ DONE ] Setting up CACERT [ DONE ] Preparing AMQP entries [ DONE ] Preparing MariaDB entries [ DONE ] Fixing Keystone LDAP config parameters to be undef if empty[ DONE ] Preparing Keystone entries [ DONE ] Preparing Glance entries [ DONE ] Checking if the Cinder server has a cinder-volumes vg[ DONE ] Preparing Cinder entries [ DONE ] Preparing Nova API entries [ DONE ] Creating ssh keys for Nova migration [ DONE ] Gathering ssh host keys for Nova migration [ DONE ] Preparing Nova Compute entries [ DONE ] Preparing Nova Scheduler entries [ DONE ] Preparing Nova VNC Proxy entries [ DONE ] Preparing OpenStack Network-related Nova entries [ DONE ] Preparing Nova Common entries [ DONE ] Preparing Neutron API entries [ DONE ] Preparing Neutron L3 entries [ DONE ] Preparing Neutron L2 Agent entries [ DONE ] Preparing Neutron DHCP Agent entries [ DONE ] Preparing Neutron Metering Agent entries [ DONE ] Checking if NetworkManager is enabled and running [ DONE ] Preparing OpenStack Client entries [ DONE ] Preparing Horizon entries [ DONE ] Preparing Swift builder entries [ DONE ] Preparing Swift proxy entries [ DONE ] Preparing Swift storage entries [ DONE ] Preparing Gnocchi entries [ DONE ] Preparing Redis entries [ DONE ] Preparing Ceilometer entries [ DONE ] Preparing Aodh entries [ DONE ] Preparing Puppet manifests [ DONE ] Copying Puppet modules and manifests [ DONE ] Applying 192.168.250.250_controller.pp 192.168.250.250_controller.pp: [ DONE ] Applying 192.168.250.250_network.pp 192.168.250.250_network.pp: [ DONE ] Applying 192.168.250.250_compute.pp 192.168.250.250_compute.pp: [ DONE ] Applying Puppet manifests [ DONE ] Finalizing [ DONE ] **** Installation completed successfully ****** Additional information: * Parameter CONFIG_NEUTRON_L2_AGENT: You have chosen OVN Neutron backend. Note that this backend does not support the VPNaaS or FWaaS services. Geneve will be used as the encapsulation method for tenant networks * A new answerfile was created in: /root/packstack-answers-20230824-111451.txt * Time synchronization installation was skipped. Please note that unsynchronized time on server instances might be problem for some OpenStack components. * File /root/keystonerc_admin has been created on OpenStack client host 192.168.250.250. To use the command line tools you need to source the file. * To access the OpenStack Dashboard browse to http://192.168.250.250/dashboard . Please, find your login credentials stored in the keystonerc_admin in your home directory. * Because of the kernel update the host 192.168.250.250 requires reboot. * The installation log file is available at: /var/tmp/packstack/20230824-111449-Rt5WRw/openstack-setup.log * The generated manifests are available at: /var/tmp/packstack/20230824-111449-Rt5WRw/manifests You have new mail in /var/spool/mail/root [root@mynode-a ~]#
安装完成后,在命令行中执行以下命令,获取OpenStack
主要组件Nova
的当前安装版本:
[root@mynode-a ~]# nova-manage --version20.6.0[root@mynode-a ~]#[root@mynode-a ~]# nova-manage --version 20.6.0 [root@mynode-a ~]#[root@mynode-a ~]# nova-manage --version 20.6.0 [root@mynode-a ~]#
安装完成后,系统会自动创建云管理员admin
和用于系统测试用的demo
用户账号,其文件信息分别保存在/root
下:
4.0K -rw-------. 1 root root 375 Jan 5 10:36 keystonerc_admin4.0K -rw-------. 1 root root 320 Jan 5 10:36 keystonerc_demo4.0K -rw-------. 1 root root 375 Jan 5 10:36 keystonerc_admin 4.0K -rw-------. 1 root root 320 Jan 5 10:36 keystonerc_demo4.0K -rw-------. 1 root root 375 Jan 5 10:36 keystonerc_admin 4.0K -rw-------. 1 root root 320 Jan 5 10:36 keystonerc_demo
可以分别查看云管理员和demo用户密码:
[root@mynode-a ~]# cat keystonerc_adminunset OS_SERVICE_TOKENexport OS_USERNAME=adminexport OS_PASSWORD='60972aca81074223'export OS_REGION_NAME=RegionOneexport OS_AUTH_URL=http://192.168.250.250:5000/v3export PS1='[\u@\h \W(keystone_admin)]$ 'export OS_PROJECT_NAME=adminexport OS_USER_DOMAIN_NAME=Defaultexport OS_PROJECT_DOMAIN_NAME=Defaultexport OS_IDENTITY_API_VERSION=3[root@mynode-a ~]#[root@mynode-a ~]#[root@mynode-a ~]# cat keystonerc_demounset OS_SERVICE_TOKENexport OS_USERNAME=demoexport OS_PASSWORD='ad605724bc8246e3'export PS1='[\u@\h \W(keystone_demo)]$ 'export OS_AUTH_URL=http://192.168.250.250:5000/v3export OS_PROJECT_NAME=demoexport OS_USER_DOMAIN_NAME=Defaultexport OS_PROJECT_DOMAIN_NAME=Defaultexport OS_IDENTITY_API_VERSION=3[root@mynode-a ~]#[root@mynode-a ~]# cat keystonerc_admin unset OS_SERVICE_TOKEN export OS_USERNAME=admin export OS_PASSWORD='60972aca81074223' export OS_REGION_NAME=RegionOne export OS_AUTH_URL=http://192.168.250.250:5000/v3 export PS1='[\u@\h \W(keystone_admin)]$ ' export OS_PROJECT_NAME=admin export OS_USER_DOMAIN_NAME=Default export OS_PROJECT_DOMAIN_NAME=Default export OS_IDENTITY_API_VERSION=3 [root@mynode-a ~]# [root@mynode-a ~]# [root@mynode-a ~]# cat keystonerc_demo unset OS_SERVICE_TOKEN export OS_USERNAME=demo export OS_PASSWORD='ad605724bc8246e3' export PS1='[\u@\h \W(keystone_demo)]$ ' export OS_AUTH_URL=http://192.168.250.250:5000/v3 export OS_PROJECT_NAME=demo export OS_USER_DOMAIN_NAME=Default export OS_PROJECT_DOMAIN_NAME=Default export OS_IDENTITY_API_VERSION=3 [root@mynode-a ~]#[root@mynode-a ~]# cat keystonerc_admin unset OS_SERVICE_TOKEN export OS_USERNAME=admin export OS_PASSWORD='60972aca81074223' export OS_REGION_NAME=RegionOne export OS_AUTH_URL=http://192.168.250.250:5000/v3 export PS1='[\u@\h \W(keystone_admin)]$ ' export OS_PROJECT_NAME=admin export OS_USER_DOMAIN_NAME=Default export OS_PROJECT_DOMAIN_NAME=Default export OS_IDENTITY_API_VERSION=3 [root@mynode-a ~]# [root@mynode-a ~]# [root@mynode-a ~]# cat keystonerc_demo unset OS_SERVICE_TOKEN export OS_USERNAME=demo export OS_PASSWORD='ad605724bc8246e3' export PS1='[\u@\h \W(keystone_demo)]$ ' export OS_AUTH_URL=http://192.168.250.250:5000/v3 export OS_PROJECT_NAME=demo export OS_USER_DOMAIN_NAME=Default export OS_PROJECT_DOMAIN_NAME=Default export OS_IDENTITY_API_VERSION=3 [root@mynode-a ~]#
4.登录控制面板
打开浏览器,输入以下地址进入OpenStack
登录页面:
http://192.168.250.250/dashboardhttp://192.168.250.250/dashboardhttp://192.168.250.250/dashboard
![在单节点物理机上以All-in-One方式部署与安装OpenStack云操作系统 图片[2]-在单节点物理机上以All-in-One方式部署与安装OpenStack云操作系统-不念博客](https://www.bunian.cn/wp-content/uploads/2024/01/1704442186-image.png)

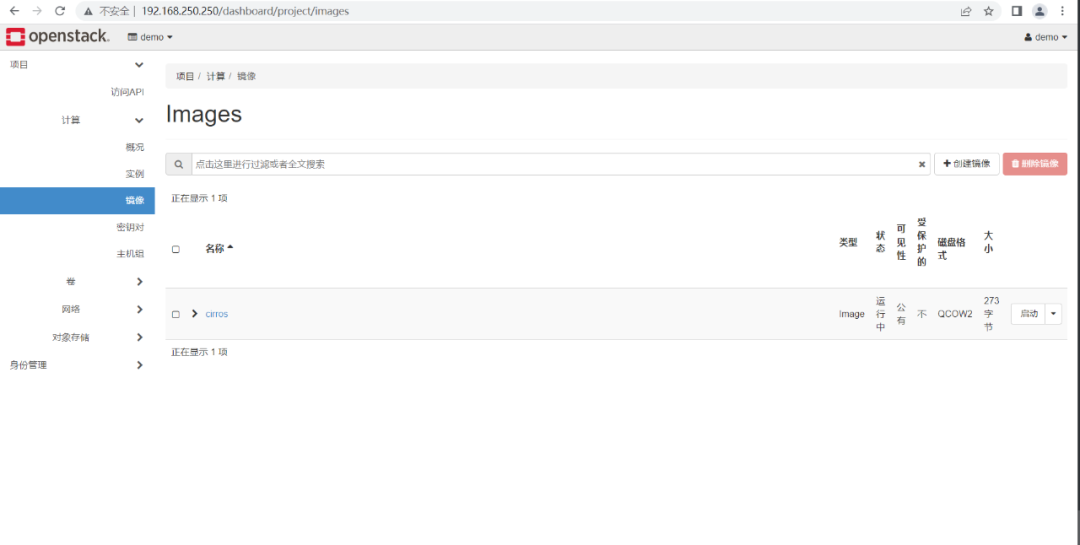

输入demo
用户名和密码ad605724bc8246e3
进入系统:
![在单节点物理机上以All-in-One方式部署与安装OpenStack云操作系统 图片[3]-在单节点物理机上以All-in-One方式部署与安装OpenStack云操作系统-不念博客](https://www.bunian.cn/wp-content/uploads/2024/01/1704442195-image.png)
这样就完成了OpenStack
云操作系统在CentOS7.9
上的部署。
